SL2400 Extended Conveyor Belt Drying/Curing Oven

It has leading thermal insulation process and thermal energy control design innovation. We push out advanced hot air circulation system, which brings a perfect furnace temperature curve and uniform distribution, effectively increases production capacity, saves costs, and makes the drying/curing oven more environmentally friendly and energy-saving.
Availability:
  • SL2400

  • ShiSheng Group

  • Conveyor Belt Drying,Curing Oven,Conveyor Belt Oven,Conveyor Belt Furnace,Curing furnace

Product introduction

SL2400 extended Conveyor Belt Drying/Curing Oven was jointly developed by Shisheng's R&D team and R&D personnel of excellent surface anti-corrosion treatment research institutions. It has leading thermal insulation process and thermal energy control design innovation. We push out advanced hot air circulation system, which brings a perfect furnace temperature curve and uniform distribution, effectively increases production capacity, saves costs, and makes the drying/curing oven more environmentally friendly and energy-saving. And in order to comply with the rapid growth trend of Dacromet Coating or Zinc Flake Coating industry, through Shisheng's professional team and leading equipment, as well as advanced workpiece curing system solutions and high-quality service, escort for your products.


Features of SL2400 Extended conveyor belt drying/curing oven:

  1. Intelligent operation, modular design, precise temperature control.

  2. Excellent heat preservation technology brings better energy saving and environmental protection, to  realize green production.

  3. High-efficiency burner, SHOEI DCM high-speed gas burner is installed  in the combustion chamber on the upper part of the furnace body.The burner has a large spray angle, long flame, complete combustion, and a large adjustment ratio, which is easy to adjust and control. It has automatic ignition. Automatically adjusts the complete set of flame monitoring and flameout protection for zero emissions.

  4. Follow the principle of aerothermodynamics to design the furnace structure and air supply design.

  5. Super versatility: Suitable for drying/curing of coating such as : Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating, topcoat, sealer.


SL2400 extended conveyor belt drying/curing oven can be applied to:

  • Fastener

  • Nuts and bolts

  • Sheet metal parts

  • Nails and screws

  • Stamping parts

  • Spring

  • Chain

  • Gasket

  • Casting

  • Standard parts

  • Wind power bolts

  • Steel parts

  • Fixtures and other metal parts that need anti-corrosion coating process.

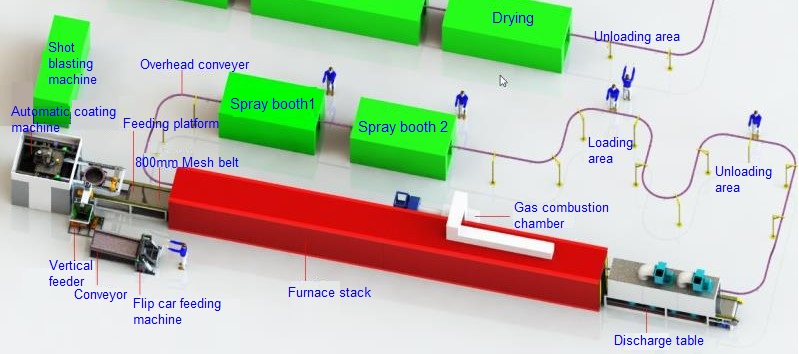

Process flow:

Loading→Drying(Pre-heating)→High temperature drying/curing→Cooling and unloading

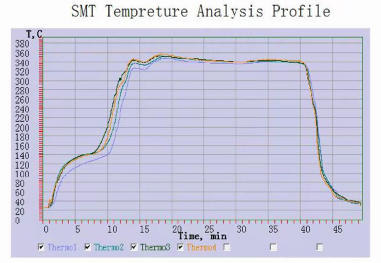

Furnace temperature curve


炉温曲线图

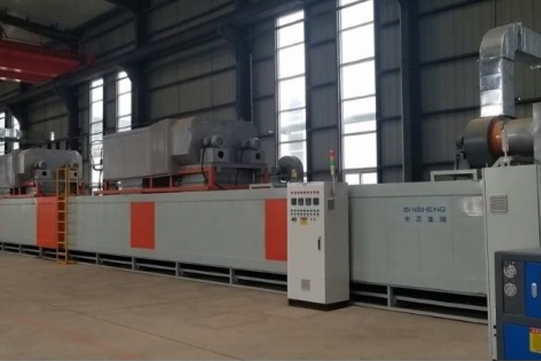

Main body of SL2400 Extended Conveyor Belt Drying/Curing oven:

  • The gas mesh belt curing furnace is mainly composed of the feeding section.

  • Sintering furnace (pre-baking area, sintering area)

  • Hot air furnace

  • Discharge section

  • Forced cooling system

  • Mesh belt transmission mechanism

  • Electrical control system


SL2400 Extended Conveyor Belt Drying/Curing Oven

Technical parameters / model number

Adjusting range(adjustable)

100~400℃

Temperature rise time(up to 320℃)

≥50min

Running speed

V=0.2~1m/min,(Stepless adjustable)

Mesh belt load bearing

200kg/m²

Mesh belt width(optional)

1200mm

Maximum workpiece height

400mm

Drive power

5.5kw

Temperature control precision

±2℃

Burner efficiency

400000Kca/H

Average air consumption

40m³/H(big fire)

Burner brand

Shoei(optional)

Energy type

Gas(Electric)

Length of the furnace body

24m(46000mm*2250mm*3500mm/Lenght*Width*Height)

Heating method

Optional: Gas heating or electric heating
