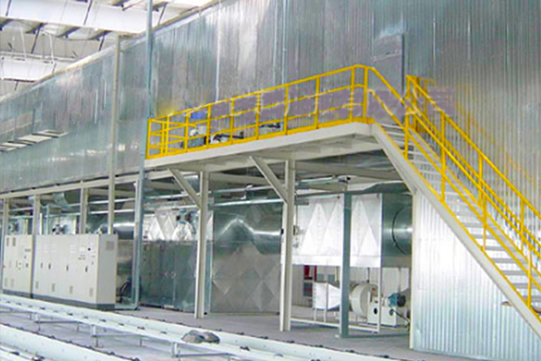

Automotive electrophoresis coating line

Electrophoresis process is widely used in automobile industry, which consists of many parts, because electrophoresis coating has many advantages, such as high utilization rate, low pollution, automatic production, high safety, rust prevention, impact prevention, corrosion resistance and so on.
Availability:

Electrophoresis process is widely used in automobile industry, which consists of many parts, because electrophoresis coating has many advantages, such as high utilization rate, low pollution, automatic production, high safety, rust prevention, impact prevention, corrosion resistance and so on. Even for some auto parts with complex shapes, edges and angles, holes and cavities workpieces, etc., they can be painted to the hidden interior of the inner cavities and crevices of structural parts such as car frames, car chassis, and various parts, to achieve a good uniform integrity of painting and greatly improve the anti-corrosion of the inner cavities of the workpieces. Therefore, high quality with advanced technology, experience, efficient service and a safe and stable production system are essential.


Electrophoresis process




Application fields of electrophoretic coating production line:

Automobile, new energy vehicle, motorcycle, aerospace, ship, military industry, wind power industry, daily hardware, household appliances, 3C electronics, agricultural machinery, engineering machinery, rail transportation, structural parts, sheet metal parts and other surface treatment.



Shi Sheng Group electrophoretic coating line features:

After years of experience, the electrophoretic coating line produced by our company has the following characteristics.

  1. Adopting modular design, production and installation, it not only has beautiful structure and reliable performance, but also can significantly shorten the construction cycle.

  2. The combination technology of rotary liquid separator, magnetic filter and paper belt filter can effectively purify the tank liquid and improve the cleaning effect.

  3. The multi-stage oil removal device developed by our company with oil-water separator achieves good oil removal effect.

  4. Adopting EDRO technology and counter-current water replenishment process, it can realize zero discharge of electrophoresis process.



Electrophoresis process:

The process flow of electrophoretic coating equipment is as follows: pre-cleaning - loading - degreasing - washing - rust removal - washing - neutralization - washing - phosphating - washing - passivation - electrophoretic coating - cleaning on the tank - ultra-filtration water washing - drying - unloading.



Composition of electrophoretic coating equipment:

Electrophoretic coating equipment includes: electric tank body, transfer backup tank, tank circulation filtration system, ultra-filtration (UF) device, electrode and pole night circulation system, paint temperature control system, DC power supply and power supply system, paint replenishment device, post-electrophoretic cleaning device, electrophoretic coating room (dust cover), electrical control cabinet and other special devices (systems). Then these special equipment and the equipment for conveying the painted objects, drying room, strong cooling room, etc. form the electrophoretic coating production line.

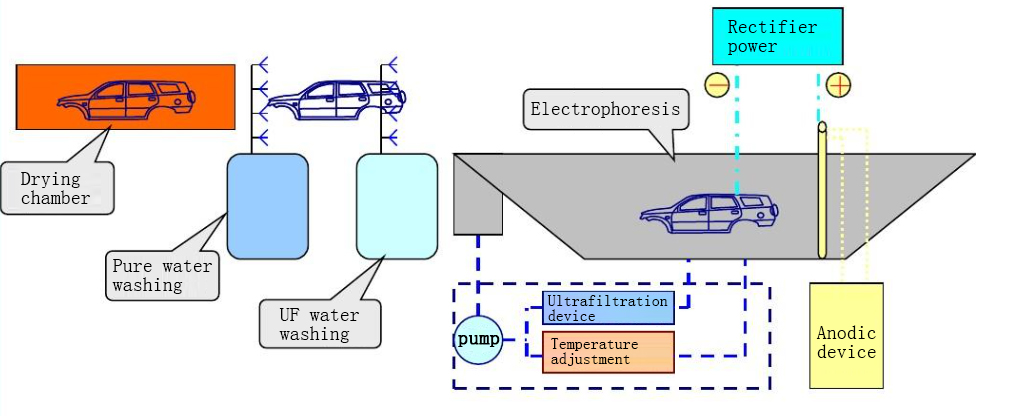

Composition of electrophoretic coating equipment



Case of electrophoretic coating line:

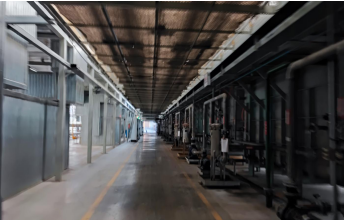

Electrophoresis pre-treatment

Electrophoresis pre-treatment

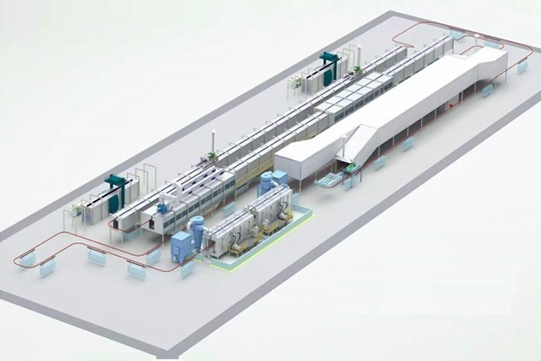

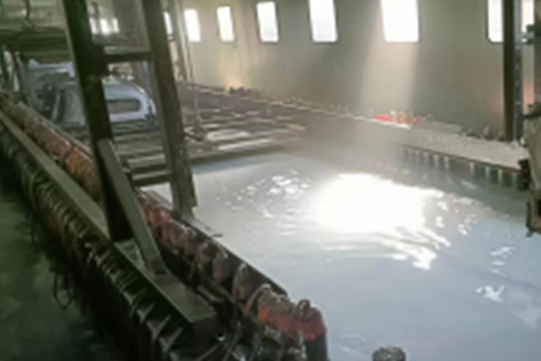

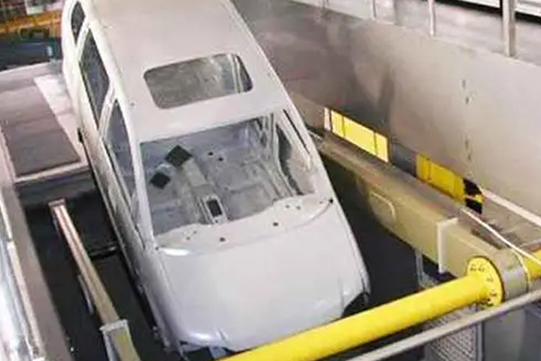

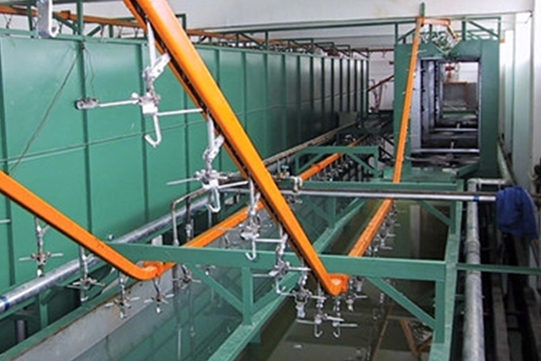

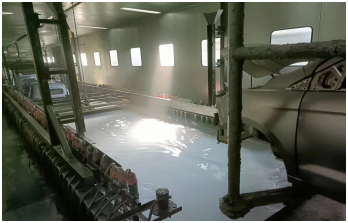

Automotive electrophoresis coating line

Automotive electrophoresis coating line

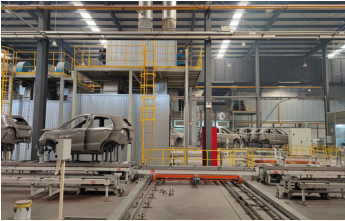

Auto conveying line

Auto conveying line

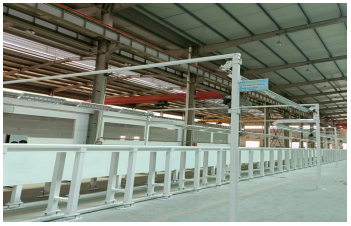

Auto chassis electrophoretic coating line

Auto chassis electrophoretic coating line

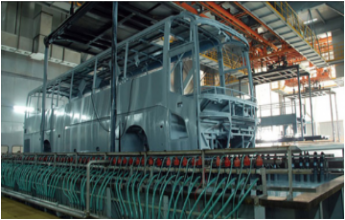

Electrophoretic coating line for passenger cars

Electrophoretic coating line for passenger cars

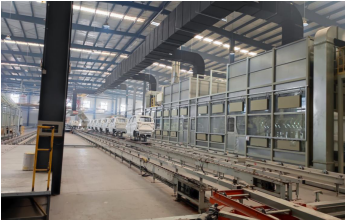

Automotive conveying equipment

Automotive conveying equipment

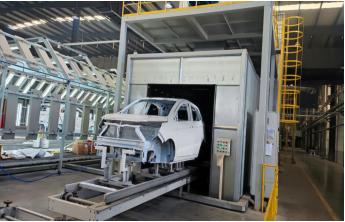

Electrophoresis drying line

Electrophoresis drying line

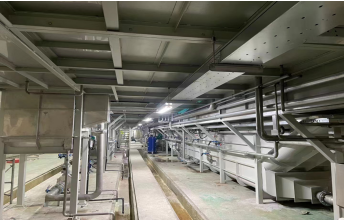

Pre-treatment electrophoretic coating line

Pre-treatment electrophoretic coating line

travelling crane  electrophoresis coating line

travelling crane  electrophoresis coating line

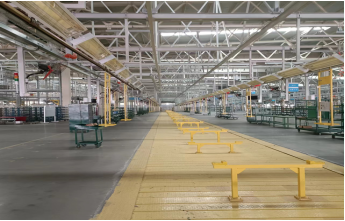

Air Accumulation Chain

Air Accumulation Chain

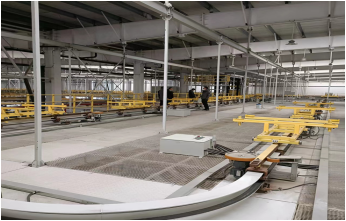

Ground friction line

Ground friction line

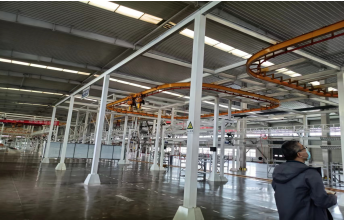

Rear axle sub-assembly area

Rear axle sub-assembly area

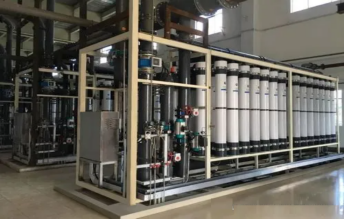

Ultrafiltration unit

Ultrafiltration unit

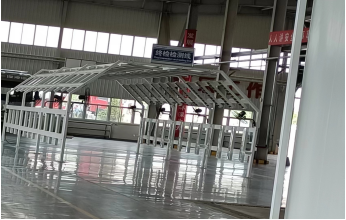

Final inspection testing line

Final inspection testing line

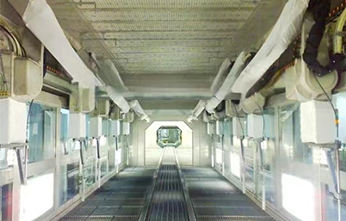

Track type spray booth

Track type spray booth
