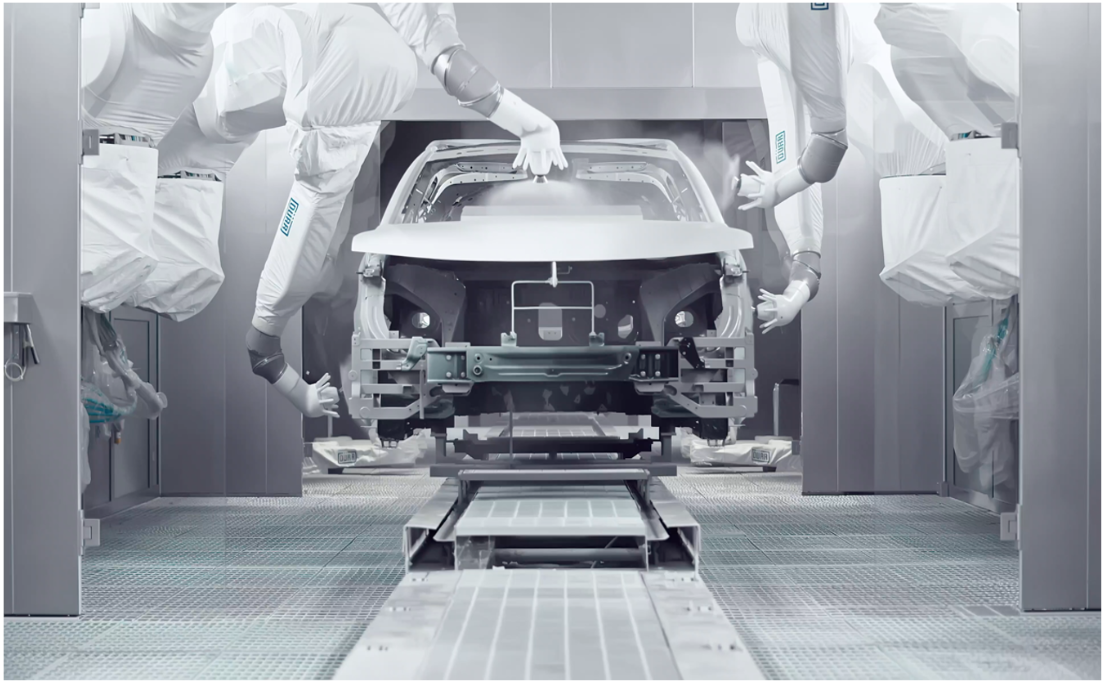

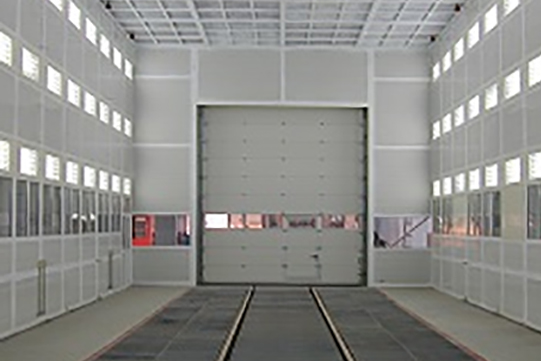

Paint And Powder Coating Line

The automatic painting and coating line of Shisheng Group solves the problems of harsh environment of manual painting operation, heavy work labor, low efficiency, unstable coating quality and poor uniformity.
Availability:

Shisheng Group, as the main body of technological innovation enterprises, independent research and development, production and sales in one, has a strong R & D team, high-tech R & D equipment, a wide range of business areas at home and abroad, experienced technology, can solve various surface treatment problems for customers. As a system integrator of metal surface treatment engineering, Shisheng Group can undertake EPC turnkey projects and the design, procurement ,construction, and commissioning services of the project according to the contract, and be fully responsible for the quality, safety, duration and cost of the contracted project, and finally submit a project to the owner to meet the use function and complete the turnkey project. EPC general contracting plans and designs the plots according to the process characteristics of the industry, and carries out equipment procurement, installation, and after-sales service according to the contract. 24-hour active response and high efficient service provide customers with peace of mind, and no worries.


Paint And Powder Coating Line


The automatic painting and coating line of Shisheng Group solves the problems of harsh environment of manual painting operation, heavy work labor, low efficiency, unstable coating quality and poor uniformity.



Paint spraying room is the equipment to provide a special environment for painting operations, the artificial environment created in the paint spraying room can meet the needs of the painting operation on the environment of temperature, humidity, illumination, cleanliness, etc.; create a relatively comfortable and safe working environment for the operator; can handle the paint mist generated by the painting operation, to protect the sprayed material from secondary pollution, the paint spraying room consists of dynamic and static pressure chamber, spraying operation room, paint mist treatment, exhaust system The paint spraying room can be divided into dry spraying room and wet spraying room according to the way of trapping paint mist.



The wet venturi booth is a classic structured booth that is already widely used in the painting industry. Our wet spray booths have a modular structure and can be produced and installed quickly. It has good indoor operating environment, high efficiency paint mist replenishment rate and fully automatic dross collection system.



The wet paint booth has the following features:

1. Suitable for mass production, especially in the machinery industry with decorative requirements such as automobiles are widely used.

2. Safe and easy to use, low power consumption and low operating costs.

3. Good effect of dealing with paint mist.

4. Circulation pipeline is not easily blocked, and the maintenance workload is very small.

5. Filtration effect of more than 99%.

6. Such as the lower center of the chamber according to the principle of Wen's arrangement of the throat filter device, water consumption than the water spin spray paint chamber.



Wet paint booth:

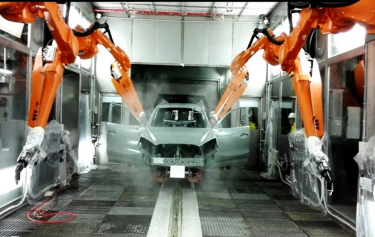

Paint booth operation room

Paint booth operation room

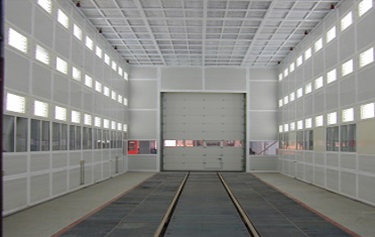

Water-rotating spray paint booth

Water-rotating spray paint booth

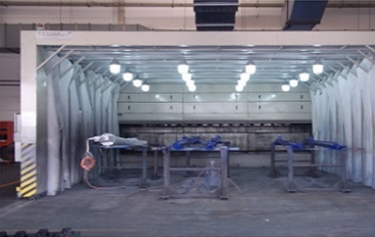

Pumpless water curtain type spray paint booth

Pumpless water curtain type spray paint booth

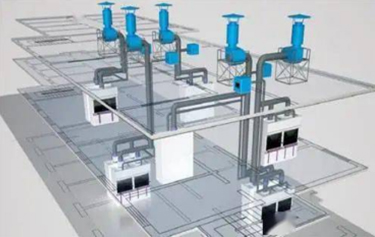

Venturi paint spraying device

Venturi paint spraying device

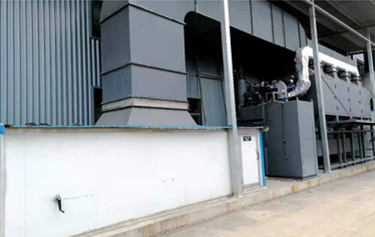

Exhaust device

Exhaust device

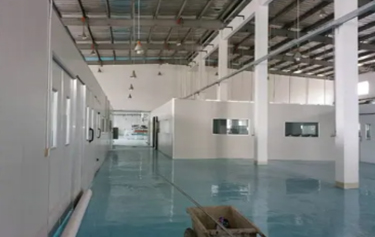

Spray painting outdoor room

Spray painting outdoor room



The dry paint booth is a dry overspray paint separation system below the paint booth grille. Its working principle is that the air polluted by paint particles during the spraying process is sucked in and filtered through the separation system trolley, this carton filter activity trolley has two layers of filtration system inside, one layer for the carton filter, the carton filter uses the international advanced labyrinth filtering method inside, the paint mist can reach 97% after the carton filter, and a after-filter is added at the back to improve the filtration effect of the unit.  At the same time, the system sets up a single separation unit that can be replaced regularly. The system is equipped with subsidiary equipment to monitor the system pressure to ensure continuous and stable operation.



Our dry spray booths have the following advantages over wet spray booths:

1. Economical: After switching from wet to dry painting, the cost of painting can be reduced exponentially by using circulating air operation;

2. Separation of excess paint without water, without expensive paint sludge (as special waste) disposal, without time-consuming and costly paint sludge draining, without chemicals (flocculants, defoamers, biocides, etc.), reducing corrosion of technical facilities in paint spray booths, without the use of pumps, reducing power consumption and maintenance costs.

3. High efficiency

4. Adsorption capacity: up to 100 kg/m² and higher according to the coating material; separation rate: up to 97%


Dry paint booth:

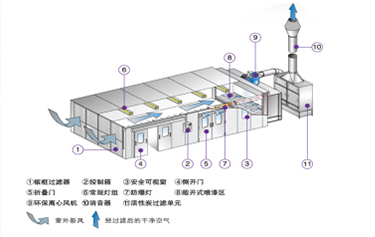

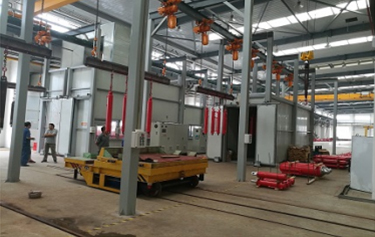

Dry paint booth

Dry paint booth

Dry paint booth

Dry paint booth

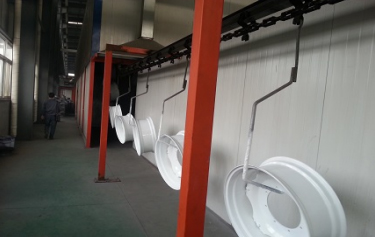

Wheel dry paint booth

Wheel dry paint booth

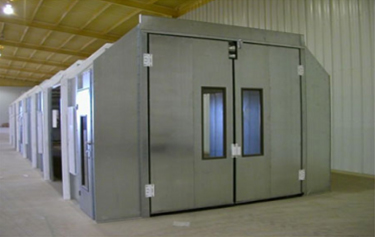

Passage type dry paint spray booth

Passage type dry paint spray booth

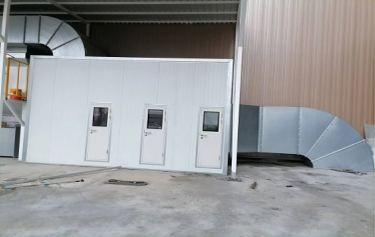

Dry spray paint room exhaust system

Dry spray paint room exhaust system

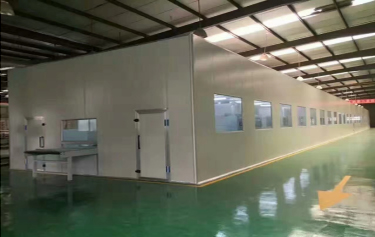

paint booth

paint booth

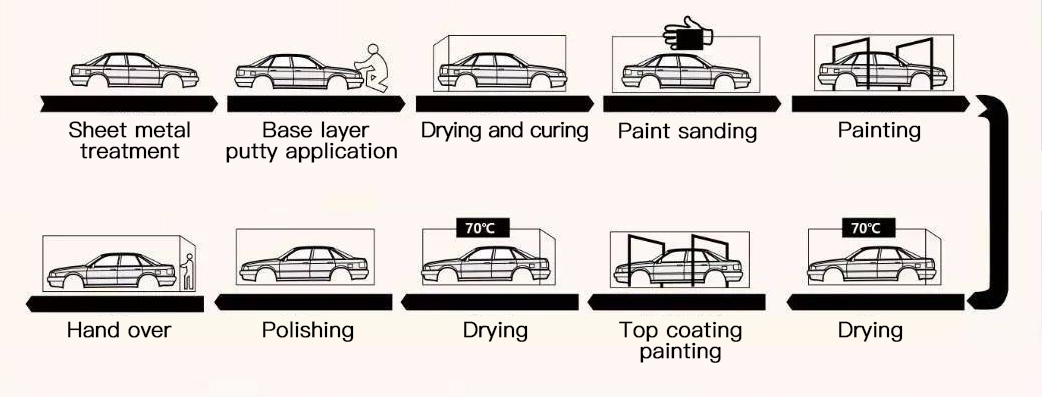

Automotive painting process:

Automotive painting process

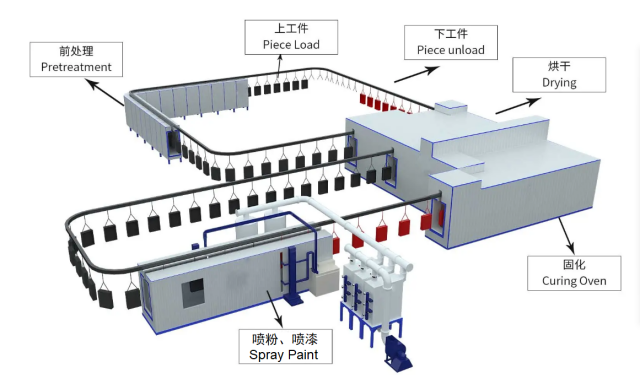

Paint spraying line composition:

The painting line consists of seven major parts: pre-treatment equipment, powder spraying system, painting equipment, oven, heat source system, electric control system, suspension conveyor chain, etc. From its components you can see the equipment needed to complete the work of the whole painting line.


Paint spraying line composition



Paint and powder coating line case:

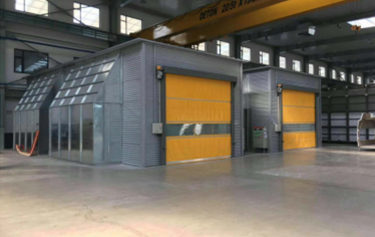

Spray painting room for large pieces

Spray painting room for large pieces

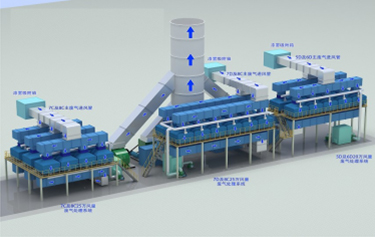

Exhaust gas treatment system

Exhaust gas treatment system

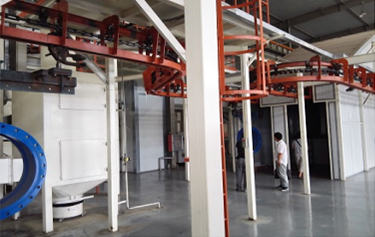

Coating line for aerospace parts

Coating line for aerospace parts

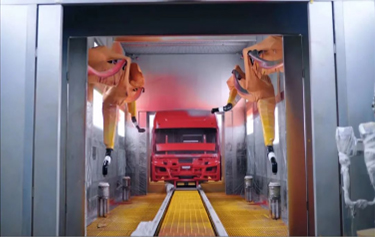

Heavy truck robotic paint booth

Heavy truck robotic paint booth

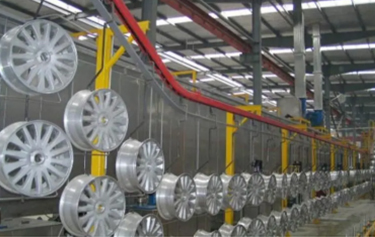

Auto Wheel Automatic Painting Line

Auto Wheel Automatic Painting Line

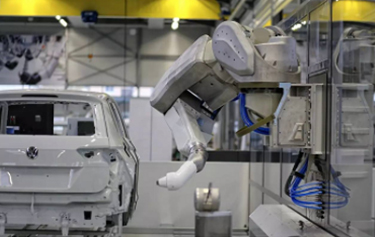

Auto painting line

Auto painting line

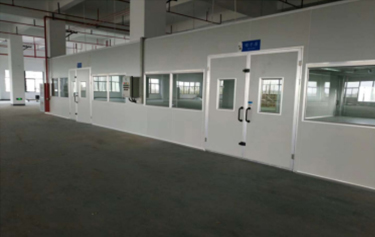

Furniture painting room

Furniture painting room

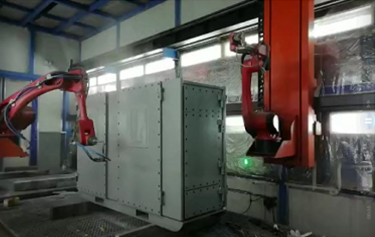

High-voltage electrical cabinet robotic powder coating line

High-voltage electrical cabinet robotic powder coating line

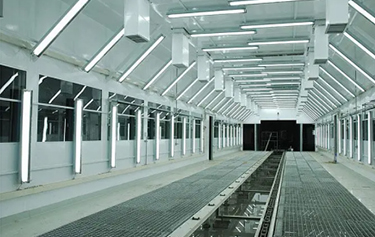

Wind power bearing painting and spraying room

Wind power bearing painting and spraying room

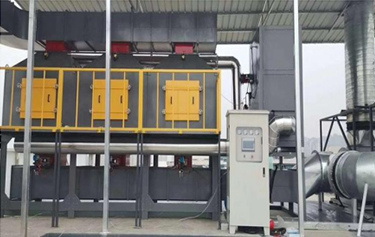

Paint spray booth waste treatment equipment

Paint spray booth waste treatment equipment

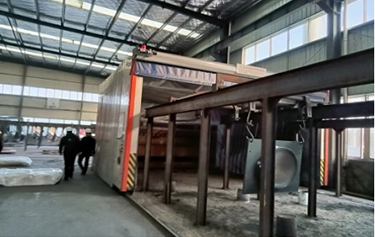

Telescopic painting of sheet metal parts

Telescopic painting of sheet metal parts

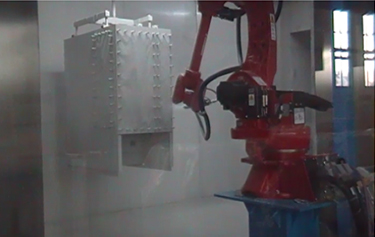

Transformer suspension chain spray painting line

Transformer suspension chain spray painting line

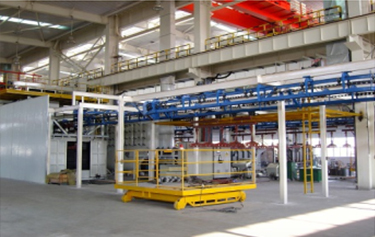

Coating line for aerospace parts1

Coating line for aerospace parts1

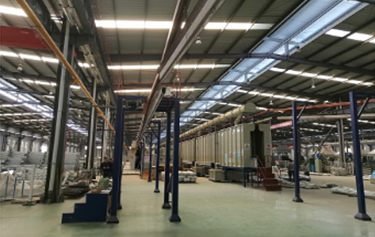

Powder coating line for sheet metal parts

Powder coating line for sheet metal parts

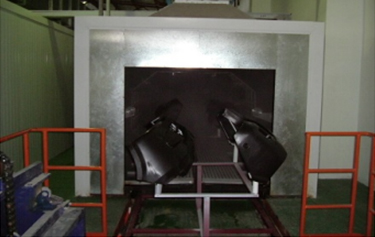

Auto bumper slip coating line

Auto bumper slip coating line

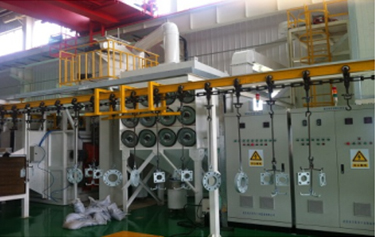

Powder coating line for metal parts

Powder coating line for metal parts

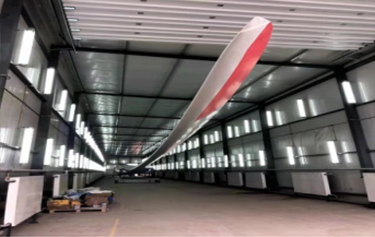

Wind power blade coating line

Wind power blade coating line

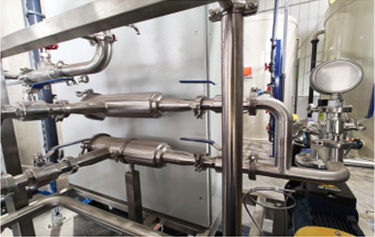

Auto parts painting wastewater treatment device

Auto parts painting wastewater treatment device

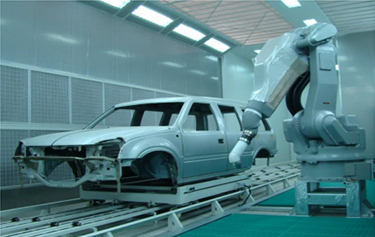

Car bumper painting line

Car bumper painting line

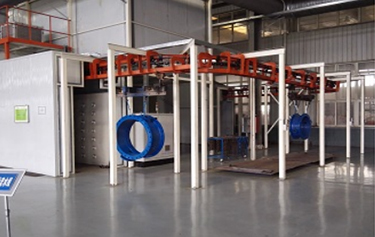

Powder Coating Line

Powder Coating Line
