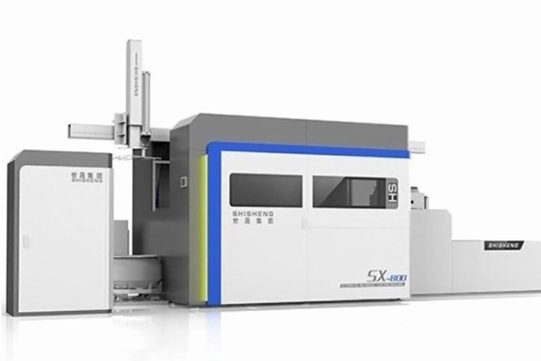

SX800 Heavy Type Full-Automatic Dip Spin Coating Machine

SX800 heavy full-automatic dip spin coating machine has two operation methods, combined with manual and full- automatic operation, without tilting function, monochrome coating, manual loading and unloading can be selected for large workpieces , small workpieces use full-automatic loading and unloading operation, which are suitable for high production capacity and large loading capacity in a single cycle.
Availability:
  • SX800

  • ShiSheng Group

  • mechanical zinc plating、zinc plating machine、nickel plating machine、zinc flake coating machine、zinc flake coating line、zinc metalizing equipment、metal coating machine

Product introduction:

SX800 heavy full-automatic dip spin coating machine has two operation methods, combined with manual and full- automatic operation, without tilting function, monochrome coating, manual loading and unloading can be selected for large workpieces , small workpieces use full-automatic loading and unloading operation, which are suitable for high production capacity and large loading capacity in a single cycle. While full-automatic dip spin coating machine is absorbing the advantages of the semi-automatic coating machine process,it has improved and innovated the control system to realize that the operation process is completely controlled by machinery, which is efficient, stable and greatly reduces labor.Its design and manufacture is based on the use of various zinc flake coating and Dacromet coating for metal surface treatment coating , and can also be used for surface coating、 coloring or sealing processing of surface treatment of other zinc flake coating or non-Dacromet coating parts.It is a metal coating equipment for metal parts. Moreover, the corrosion resistance and heat resistance of the coating are superior to those of galvanized and hot dip galvanized , and no toxic and harmful waste water, waste gas, and waste liquid will be discharged during the production process , no pollution to the environment, which is difficult for galvanized. It is a coating machine that can replace the galvanizing process to achieve green and pollution-free.

The overall of dip spin coating equipment layout is reasonable, the appearance is beautiful, efficient, economical and practical. It is  designed and manufactured in strict accordance with the dip spin coating process  standards and specification requirements to ensure the advancement, reliability and ease of use and maintenance of the automatic dip spin coating machine.


Advantages:

While learning the technology advantages of semi-automatic coating machine , SX800 full-automatic heavy-duty manipulator Dacromet coating machine improves and innovates the control system, realizing the operation process is fully controlled by machinery. It is highly efficient, stable and greatly reduces labor.

微信图片_20230706103751

Our dip spin coating machine is full-automatic,                                                           Suitable for water-based and solvent-based coating

   with functions such as automatic loading and                                                             solutions, such as: Dacromet coating,zinc flake

  weighing.                                                                                                                     coating,Geomet, Magni,DÖRKEN,Teflon, zinc nickel

                                                                                           plating, anti rust coating.



Features of SX800 Heavy Full-Automatic Dip Spin Coating Machine:

  1. Rationalized design: planetary arrangement of the basket, interchangeable workpiece positions, effective removal of residual coating fluid on the workpiece, no damage to the workpiece, and a high pass rate.

  2. Intelligent control: one-button intelligent start, transmission speed adjustable by frequency conversion, automatic dip spin coating equipment), automatic loading and unloading, automatic weighing , high degree of automation, ensuring smooth operation of the whole process. The whole process is controllable, effectively reducing production costs.

  3. Super versatility: Suitable for Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating,mechanical zinc plating, topcoat, sealer.

  4. Real-time monitoring: full-process monitoring, timely detection and feedback, to meet customer curing process requirements.

  5. Intelligent feeding system: each basket is connected, the workpiece is evenly distributed, and accumulation is avoided.

  6. Customized service: Coating machine can be customized according to customer needs.

  7. Full service: Shisheng Group provides complete services from research and development, design, manufacturing, installation and after-sales.


Working Capability:

Workpiece range: Standard parts、stamping parts、customer specified parts.

Beat time: 2′30″/basket (adjustable)

Loading capacity: 250kg/basket

Production capacity (theory): 6 tons/h (one coating and one drying)

Product quality requirements: two-coating and two-baking or three-coating and three-baking Dacromet, coating thickness 6~10μm


SX800 Heavy Full-Automatic Dip Spin Coating Machine can be applied to :

  • Fastener

  • Nuts and bolts

  • Sheet metal parts

  • Nails and screws

  • Stamping parts

  • Spring

  • Chain

  • Gasket

  • Casting

  • Standard parts

  • Wind power bolts

  • Steel parts

  • Fixtures and other metal parts that need anti-corrosion coating process.



Work Process:

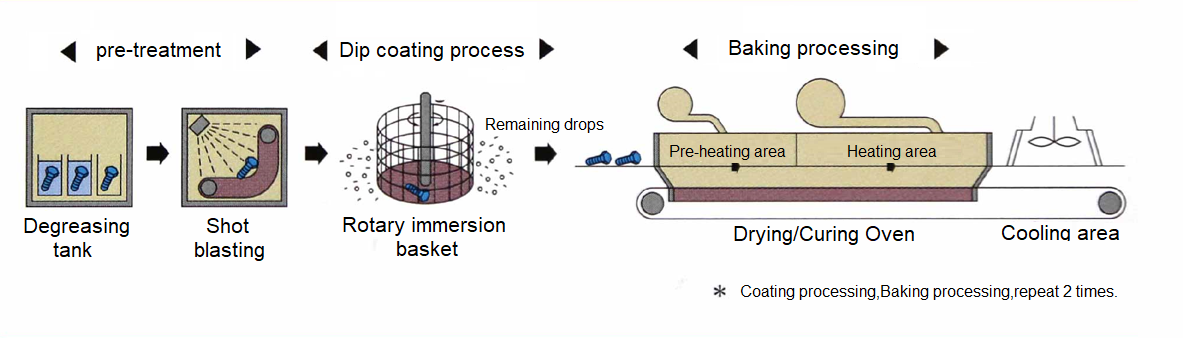

Zinc flake coating usually needs to complete the following process through dip spin coating equipment:

dip spin coating1




Main Body of SX800 Heavy Full-Automatic Dip Spin Coating Machine:

  • Dip Spin Coating Machine System

  • Centrifugal Coating System

  • Drying/Curing Oven System

  • Automatic Weighing System

  • Automatic Loading and Unloading System

  • Workpiece Rotation Conveying Distribution System

  • Coating Solution Temperature Adjustment System

  • Coating Solution Recovery Device

  • Operational Control System


SX800 Heavy Full-Automatic Dip Spin Coating Machine
Technical parameters / model number
Edition

Standard edition

Basket qty

1 pcs

Basket diameter

Φ800mm

Workpiece basket loading capacity

250KG

Workpiece length

20mm500mm

Workpiece diameter

ΦM8M60

Centrifuge speed

100~320r/min

Loading capacity of coating liquid

300~340L

Chiller power

3HP

Total power

30KW
