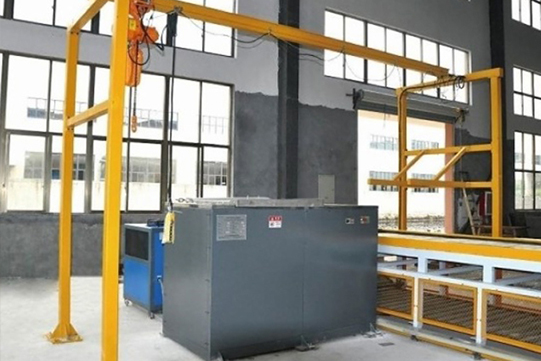

SCM650 Small Semi-Automatic Dip Spin Coating Machine

SCM650 small semi-automatic dip spin coating machine,manually loading and unloading,mainly for some small workpieces coating((PS: such as fasteners, small standard parts, small stamping parts). Lifting basket with gantry hook type into the paint cylinder for coating work, monochrome coating, stable operation, simple operation.
Availability:
  • SCM650

  • ShiSheng Group

  • mechanical zinc plating、zinc plating machine、nickel plating machine、zinc flake coating machine、zinc flake coating line、zinc metalizing equipment、metal coating machine

Product introduction

SCM650 small semi-automatic dip spin coating machine,manually loading and unloading,mainly for some small workpieces coating((PS: such as fasteners, small standard parts, small stamping parts). Lifting basket with gantry hook type into the paint cylinder for coating work, monochrome coating, stable operation, simple operation.Its design and manufacturer is based on the use of various zinc flake coating and Dacromet coating  for metal surface treatment coating , and can also be used for surface coating、coloring or sealing processing of surface treatment of other zinc flake coating or non-Dacromet coating parts.It is a metal coating equipment for metal parts,the corrosion resistance and heat resistance of the coating are superior to those of galvanized and hot dip galvanized , and no toxic and harmful waste water, waste gas, and waste liquid will be discharged during the production process , no pollution to the environment, which is difficult for galvanized. It is a coating machine that can replace the galvanizing process to achieve green and pollution-free.

SCM650 small semi-automatic dip spin coating machine is suitable for such as : Dacromet Coating , zinc flake coating , Geomet, Magni,DÖRKEN, Teflon, zinc nickel plating, anti rust coating, anti corrosion coating, mechanical zinc plating and other coatings.The overall layout is reasonable, the appearance is beautiful, efficient, economical and practical. It is designed and manufactured in strict accordance with the dip spin coating process  standards and specification requirements to ensure the advancement, reliability and ease of use and maintenance of the dip spin coating machine.

Advantages

No toxic and harmful waste water, waste gas, and waste liquid will be discharged during the production process , no pollution to the environment, which is difficult for galvanized. It is a coating machine that can replace the galvanizing process to achieve green and pollution-free.


微信图片_20230706103751

Our dip spin coating machine is easy to operate,                                                     Suitable for water-based and solvent-based coating

stable in operation and applicable to a wide range of                                              solutions, such as: Dacromet coating, zinc flake

workpieces.                                                                                                              coating,Geomet, Magni,DÖRKEN, Teflon, zinc

                                                                                                         nickel plating, anti rust coating.



Features of SCM650 small semi-automatic dip spin coating maching:

  1. Rationalized design: The planetary arrangement of the basket, the combination of revolution and rotation, 180° forward and reverse conversion, makes the position of the workpiece interchangeable, effectively removes the residual coating liquid of the workpiece, the workpiece is not damaged, and the pass rate is high.

  2. Super versatility: Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating, topcoat, sealer.

  3. Workpiece conveying system: Evenly distribute the workpieces to avoid accumulation.

  4. Easy maintenance: simple structure, convenient maintenance later.

  5. Customized service: Coating machine can be customized according to customer needs.

  6. Full service: Shisheng Group provides complete services from research and development, design, manufacturing, installation and after-sales.



SCM650 small semi-automatic dip spin coating machine can be applied to:

  • Fastener

  • Nuts and bolts

  • Sheet metal parts

  • Nails and screws

  • Stamping parts

  • Spring

  • Chain

  • Gasket

  • Casting

  • Standard parts

  • Steel parts

  • Fixtures and other metal parts that need anti-corrosion coating process.

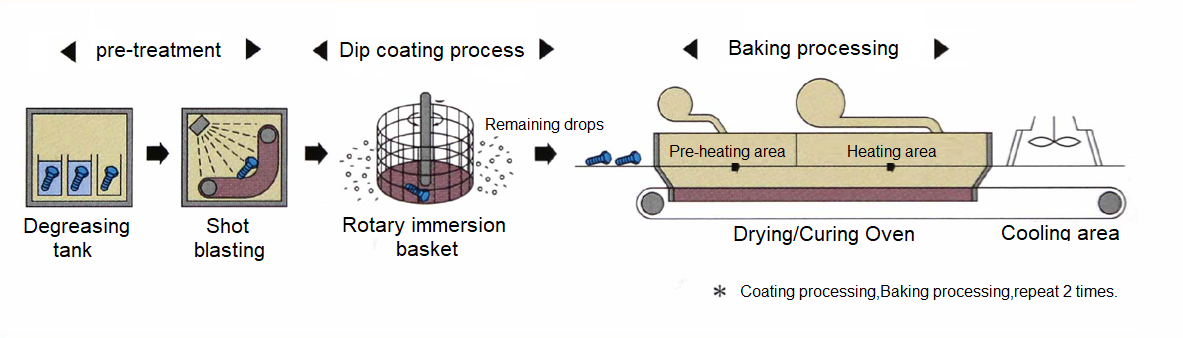

Work Process:

Zinc flake coating usually needs to complete the following process through dip spin coating equipment:

23


Main body of SCM650 small semi-automatic dip spin coating machine:

  • Dip Spin Coating Machine System

  • Centrifugal Coating System

  • Drying and tilting system

  • Drying curing system

  • Workpiece conveyor system

  • Coating Solution Temperature Adjustment System

  • Coating liquid recovery device

  • Electrical control system

SCM650 small semi-automatic dip spin coating machine

Technical parameters / model number

Basket quantity

2pcs

Basket diameter

Φ650

Workpiece basket capacity

80KG

Workpiece diameter

ΦM6~M30

Workpiece length

10mm~250mm

Maximum centrifugal speed

350r/min
