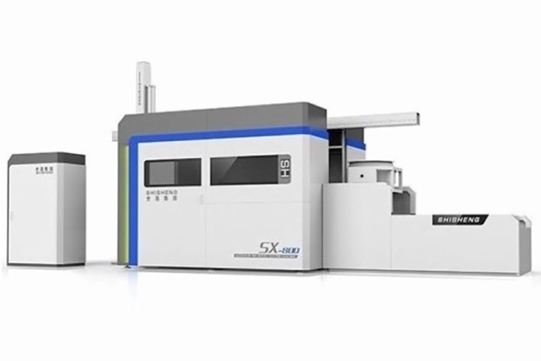

SX800 Light Type Tiltable Full-Automatic Dip Spin Coating Machine

SX800 light tiltable full-automatic dip spin coating machine is specially designed for basket loading capacity of less than 120 kg to achieve multi-color coating.
Availability:
  • SX800

  • ShiSheng Group

  • mechanical zinc plating、zinc plating machine、nickel plating machine、zinc flake coating machine、zinc flake coating line、zinc metalizing equipment、metal coating machine

Product introduction:

SX800 light tiltable full-automatic DIP Spin Coating Machine is  specially designed for basket loading capacity of less than 120 kg to achieve multi-color coating. This coating machine is a full- automatic manipulator work, with high efficiency, high stability, high intelligence, modular design and installation, so that the process parameters have a memory function and real-time monitoring. Its design and manufacture is based on the use of various zinc flake coating and Dacromet coating for metal surface treatment coating , and can also be used for surface coating、coloring or sealing processing of surface treatment of other zinc flake coating or non-Dacromet coating parts.It is a metal coating equipment for metal parts.This coating equipment with 75°tilt (PS: the angle can be designed according to the workpiece) function, some deep holes, blind holes, slit types of workpiece can be well coated,which can also prevent residual liquid in blind holes and the thread of the workpiece. The operation process is fully controlled by machinery, so as to achieve high efficiency, high stability, and greatly reduce labor. Moreover, the corrosion resistance and heat resistance of the coating are superior to those of galvanized and hot dip galvanized , and no toxic and harmful waste water, waste gas, and waste liquid will be discharged during the production process , no pollution to the environment, which is difficult for galvanized. It is a coating machine that can replace the galvanizing process to achieve green and pollution-free.

SX800 tiltable full-automatic dip spin coating machine can choose manual loading and unloading according to different workpieces, and can also choose different programs according to different workpieces. One machine, multi-purpose. And different coatings can be used according to different needs, suitable for such as: Dacromet Coating , zinc flake coating , Geomet, Magni,DÖRKEN, Teflon, zinc nickel plating, anti rust coating, anti corrosion coating, mechanical zinc plating and other coatings .And the coating liquid cylinder and basket are easy to replace.The overall of dip spin coating equipment layout is reasonable, the appearance is beautiful, efficient, economical and practical. It is designed and manufactured in strict accordance with the dip spin coating process  standards and specification requirements to ensure the advancement, reliability and ease of use and maintenance of the automatic dip spin coating machine.


Advantages:

While learning the technological advantages of semi-automatic coating machine , SX800 full-automatic tiltable manipulator Dacromet coating machine improves and innovates the control system to realize the operation process is fully controlled by machinery. The tiltable design makes special-shaped parts, hexagonal workpiece can be evenly coated without dead angle or accumulation liquid, thus achieving high efficiency, high stability and greatly reducing labor.

微信图片_20230706103751


Our dip spin coating machine is full-automatic,                                                  Suitable for water-based and solvent-based coating

with functions such as automatic loading and                                                      solutions, such as: Dacromet coating, zinc flake

          weighing.                                                                                                              coating,Geomet, Magni,DÖRKEN, Teflon, zinc nickel

                                                                                                       plating, anti rust coating.



Features of SX800 Light Tiltable Full-Automatic Dip Spin Coating Machine:

  1. Rationalized design: planetary arrangement of the basket, interchangeable workpiece positions, effective removal of residual coating fluid on the workpiece, no damage to the workpiece, and a high pass rate.

  2. Intelligent control: one-button intelligent start, transmission speed adjustable by frequency conversion, automatic dip spin coating equipment), automatic loading and unloading, automatic weighing , high degree of automation, ensuring smooth operation of the whole process. The whole process is controllable, effectively reducing production costs.

  3. Super versatility: Suitable for Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating,mechanical zinc plating, topcoat, sealer.

  4. Diversified colors: paint tank can be replaced according to corresponding paint color  to achieve the color diversification of the workpiece.

  5. Real-time monitoring: full-process monitoring, timely detection and feedback, to meet customer curing process requirements.

  6. Intelligent feeding system: each basket is connected, the workpiece is evenly distributed, and accumulation is avoided.

  7. Optional function: Robot feeding is optional.

  8. Customized service: Coating machine can be customized according to customer needs.

  9. Full service: Shisheng Group provides complete services from research and development, design, manufacturing, installation and after-sales.


Working Capability:

Workpiece range: Standard parts、stamping parts、customer specified parts.

Beat time: 3′30″/basket (adjustable)

Loading capacity: 100kg/basket ( double baskets work )

Production capacity (theory): 4 tons/h (one coating and one drying)

Product quality requirements: two-coating and two-baking or three-coating and three-baking Dacromet, coating thickness 6~10μm.


SX800 Light Tiltable Full-Automatic Dip Spin Coating Machine can be applied to:

  • Fastener

  • Nuts and bolts

  • Sheet metal parts

  • Nails and screws

  • Stamping parts

  • Spring

  • Chain

  • Gasket

  • Casting

  • Standard parts

  • Wind power bolts

  • Steel parts

  • Fixtures and other metal parts that need anti-corrosion coating process.



Work Process:

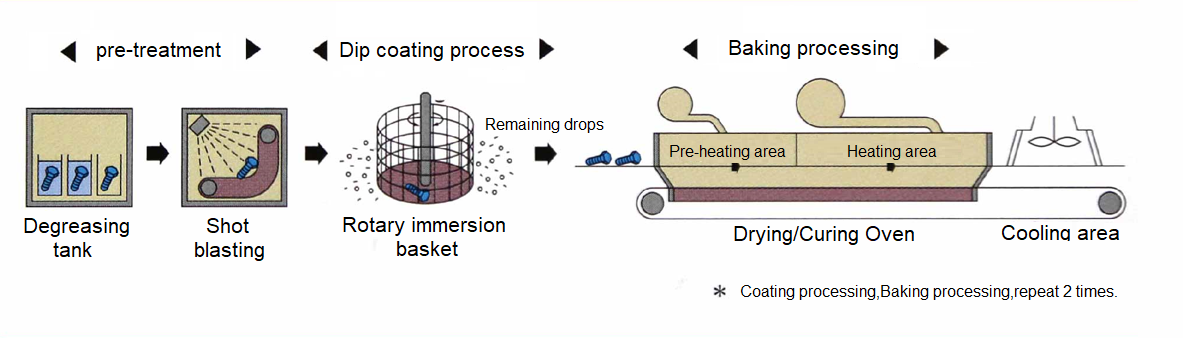

Zinc flake coating usually needs to complete the following process through Dip spin coating equipment:

23



Main Body of SX800 Light Tiltable Full-Automatic Dip Spin Coating Machine:

  • Dip Spin Coating Machine System

  • Centrifugal Coating System

  • Spin Dry Tilting System

  • Drying/Curing Oven System

  • Automatic Weighing System

  • Automatic Loading and Unloading System

  • Workpiece Rotation Conveying Distribution System

  • Coating Solution Temperature Adjustment System

  • Coating Solution Recovery Device

  • Operational Control System

SX800 Light Tilbale Full-Automatic Dip Spin Coating Machine
Technical parameters / model number

Edition type

Standard edition

Basket qty

1 pcs

Basket diameter

Φ800

Workpiece basket rated capacity

100KG

Workpiece length

10mm~400mm

Workpiece diameter

ΦM6~M40

Centrifugal speed

100-320r/min

Loading capacity of coating liquid

280~320L

Chiller power

3HP

Total power

15KW
