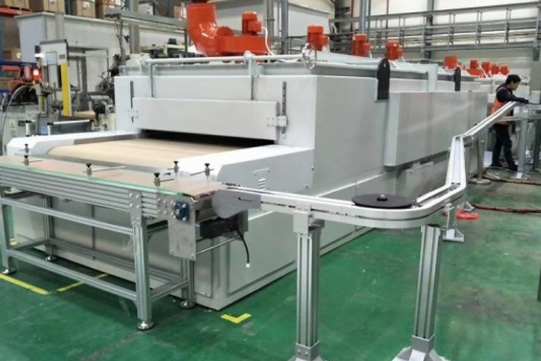

SL1800 Electric Heating Conveyor Belt Drying/Curing Oven

SL1800 Electric-heating conveyor belt drying/curing oven was jointly developed by Shisheng's R&D team and R&D personnel of excellent surface anti-corrosion treatment research institutions. It has leading thermal insulation process and thermal energy control design innovation.
Availability:
  • SL1800

  • ShiSheng Group

  • Conveyor Belt Drying,Curing Oven,Conveyor Belt Oven,Conveyor Belt Furnace,Curing furnace

Product introduction

SL1800 electric-heating Conveyor Belt Drying/Curing Oven was jointly developed by Shisheng's R&D team and R&D personnel of excellent surface anti-corrosion treatment research institutions. It has leading thermal insulation process and thermal energy control design innovation. We push out advanced hot air circulation system, which brings a perfect furnace temperature curve and uniform distribution, effectively increases production capacity, saves costs, and makes the drying/curing oven more environmentally friendly and energy-saving. And in order to comply with the rapid growth trend of Dacromet Coating or Zinc Flake Coating industry, through Shisheng's professional team and leading equipment, as well as advanced workpiece curing system solutions and high-quality service, escort for your products.


Features of SL1800 Electric-heating Conveyor Belt Drying/Curing Oven:

  1. Intelligent operation.

  2. Modular design, complete machine assembly, plug and play, easy installation, intelligent selection.

  3. Accurate temperature control. This curing furnace adopts Japanese optical-mechanical thermal technology.The hot air circulation system simultaneously supplies air up and down the inside of the furnace, avoiding the separate upper and lower air supply used by most manufacturers at present, so that uneven high temperature curing of workpiece above or below happens due to not hot air. the whole set of hot air circulation system design is scientific and reasonable, to ensure the uniformity of furnace temperature, the temperature of the pre-drying area can be adjusted at any time by the frequency converter, the high temperature curing area is controlled separately, the temperature is adjustable, and the temperature can be adjusted at any time according to the workpiece.

  4. Energy efficient.

  5. Superior performance.

  6. Excellent heat preservation technology brings better energy saving and environmental protection, to  realize green production.

  7. Super versatility: Suitable for drying/curing of coating such as : Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating, topcoat, sealer.


SL1800 electric-heating conveyor belt drying/curing oven can be applied to:

  • Fastener

  • Nuts and bolts

  • Sheet metal parts

  • Nails and screws

  • Stamping parts

  • Spring

  • Chain

  • Gasket

  • Casting

  • Standard parts

  • Wind power bolts

  • Steel parts

  • Fixtures and other metal parts that need anti-corrosion coating process.


Process flow:

Loading→Drying(Pre-heating)→High temperature curing→Cooling and unloading

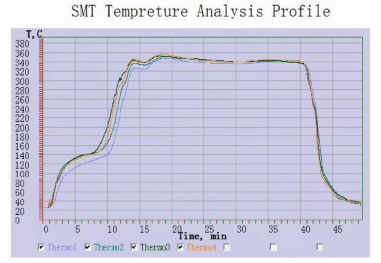

Furnace temperature curve:

炉温曲线图



Main body of SL1800 Electric-heating Conveyor Belt Drying/Curing oven:

  • Feed section

  • Furnace lining part

  • Furnace body part (pre-baking area, sintering area)

  • Electrical parts

  • Thermal cycling unit

  • Discharge section

  • Forced cooling system

  • Mesh belt transmission mechanism

  • Electrical control system


SL1800 Electric-heating Conveyor Belt/Drying/Curing Oven

Technical parameters / model number

The Max temperature(adjustable)

500℃

Mesh belt width(optional)

800~1200mm

Temperature rise time(up to 320℃)

45-min

Driving power

5.5KW

Running Speed

V=0.2~0.8米/分钟(m/min)

Total power

400kw

Oven Overall dimensions

28000x2000x1900mm(customized)

Heating method

Electric heating










Remark:

  • The above performance parameters may vary due to different manufacturing process, electrical selection, installation size, workpiece shape and process selection.

  • Specific construction operations and equipment adjustment and maintenance methods can be guided by our  technical engineers on site.

  • For safety and health protection, please refer to our company's manual.
