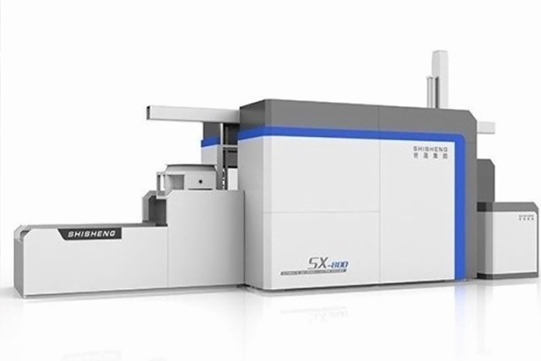

SX800 Tiltable Semi-automatic Dip Spin Coating Machine

SX800 tiltable semi-automatic dip spin coating machine uses a gantry hook-type lifting basket to put it into the paint tank for coating work.single-color coating, stable operation, simple operation. Its design and manufacture is based on the use of various zinc flake coating and dacromet coating for metal surface treatment coating.
Availability:
  • SX800

  • ShiSheng Group

  • mechanical zinc plating、zinc plating machine、nickel plating machine、zinc flake coating machine、zinc flake coating line、zinc metalizing equipment、metal coating machine

Product introduction

SX800 tiltable semi-automatic DIP Spin Coating Machine (DIP Spin Coating Machine) uses a gantry hook-type lifting basket to put it into the paint tank for coating work.Single-color coating, stable operation, simple operation. Its design and manufacture is based on the use of various zinc flake coating and Dacromet coating for metal surface treatment coating , and can also be used for surface coating、coloring or sealing processing of surface treatment of other zinc flake coating or non-Dacromet coating parts.It is a metal coating equipment for metal parts.This coating machine has a tilt function , some deep holes, blind holes, slit types of workpiece can be well coated,which can also prevent residual liquid in blind holes and the thread of the workpiece, no dead angle and no fluid accumulation. Moreover, the corrosion resistance and heat resistance of the coating are superior to those of galvanized and hot dip galvanized , and no toxic and harmful waste water, waste gas, and waste liquid will be discharged during the production process , no pollution to the environment, which is difficult for galvanized. It is a coating machine that can replace the galvanizing process to achieve green and pollution-free.

SX800 tiltable semi-automatic Dip Spin Coating Machine can be applied to, such as: Dacromet Coating , zinc flake coating , Geomet, Magni,DÖRKEN, Teflon, zinc nickel plating, anti rust coating, anti corrosion coating, mechanical zinc plating and other coatings . DIP Spin Coating Equipment  has a reasonable overall layout, beautiful appearance, high efficiency, economical and practical. It is designed and manufactured in strict accordance with the standards and specifications of the Dip Spin Coating Process to ensure the advancement, reliability, and ease of use and maintenance of the Dip Spin Coating Machine.


Advantages:

This coating machine has a tilt function , some deep holes, blind holes, slit types of workpiece can be well coated,which can also prevent residual liquid in blind holes and the thread of the workpiece, no dead angle and no fluid accumulation.

微信图片_20230706103751

Our dip spin coating machine is simple operation,                                                               It is Suitable for water-based and solvent-based

stable operation, and a wide range of applicable                                                                     coating solutions, such as: Dacromet coating,

workpieces.                                                                                                                               zinc flake coating,Geomet, Magni,DÖRKEN,

                                                                                                                                              Teflon, zinc nickel plating, anti rust coating.



Features of SX800 Tiltable Semi-Automatic Dip Spin Coating Machine:

  1. Rationalized design: planetary arrangement of the basket, interchangeable workpiece positions, effective removal of residual coating fluid on the workpiece, no damage to the workpiece, and a high pass rate.

  2. Super versatility: cuitable for dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating,mechanical zinc plating, topcoat, sealer.

  3. Workpiece conveying system: the workpieces are evenly distributed to avoid accumulation.

  4. Easy maintenance: simple structure, convenient maintenance in the later stage.

  5. Customized service: coating machine can be customized according to customer needs.

  6. Full service: Shisheng Group provides complete services from research and development, design, manufacturing, installation and after-sales.


Working Capability:

Workpiece range: Standard parts、stamping parts、customer specified parts.

Beat time: 2′00″/basket (adjustable)

Loading capacity: 100kg/basket ( double baskets work )

Production capacity (theory): 1.2 tons/h (one coating and one drying)

Product quality requirements: two-coating and two-baking or three-coating and three-baking Dacromet, coating thickness 6~10μm.


SX800 Tiltable Semi-Automatic Dip Spin Coating Machine can be applied to :

  • Fastener

  • Nuts and bolts

  • Sheet metal parts

  • Nails and screws

  • Stamping parts

  • Spring

  • Chain

  • Gasket

  • Casting

  • Standard parts

  • Wind power bolts

  • Steel parts

  • Fixtures and other metal parts that need anti-corrosion coating process.

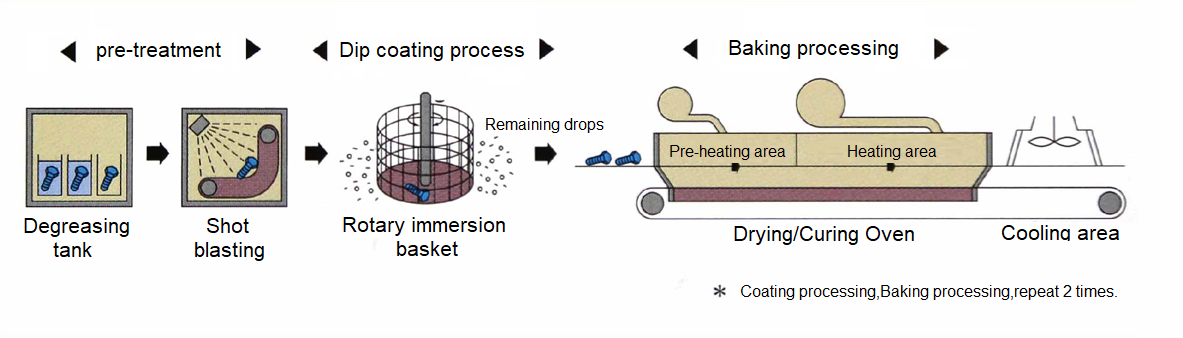

Work Process:

Zinc flake coating usually needs to complete the following process through dip spin coating equipment:

23


Main body of SX800 tiltable semi-automatic dip spin coating machine:

  • Dip Spin Coating Machine System

  • Centrifugal coating system

  • Spin-dry tiltable system

  • Drying/Curing Oven System

  • Workpiece conveying system

  • Coating Solution Temperature Adjustment System

  • Coating Solution Recovery Device

  • Operational Control System

SX800 Tiltable Semi-Automatic Dip Spin Coating Machine

Technical parameters / model number

Basket quantity

2 pcs

Basket diameter

Φ800mm

Workpiece length


Workpiece diameter


Maximum capacity

1200kg/h

Maximum loading capacity for basket

100kg

Centrifugal speed

0~340r/min

Coating liquid loading capacity

300L

Suitable workpiece weight

≤10kg

Suitable workpiece length

≤600cm

Chiller power

5HP

Total power

15KW
