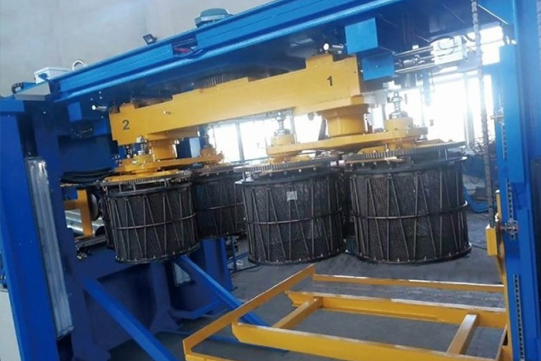

DCM500 Six-Basket Full-Automatic Dip Spin Coating Machine

Design and manufacture of DCM500 six-basket automatic dip-spin coating machine.It is based on the use of various zinc flake coating and Dacromet coating (water and oil) for metal surface treatment coating , and can also be used for surface coating、coloring or sealing processing of surface treatment of other zinc flake coating or non-Dacromet coating parts.
Availability:
  • DCM500

  • ShiSheng Group

  • mechanical zinc plating、zinc plating machine、nickel plating machine、zinc flake coating machine、zinc flake coating line、zinc metalizing equipment、metal coating machine

Product introduction

Design and manufacture of DCM500 six-basket automatic dip-spin coating machine.It is based on the use of various zinc flake coating and Dacromet coating (water and oil) for metal surface treatment coating , and can also be used for surface coating、coloring or sealing processing of surface treatment of other zinc flake coating or non-Dacromet coating parts.It is a metal coating equipment for metal parts, which can replace the galvanizing process to achieve green and pollution-free.This coating machine is a full- automatic manipulator, with high efficiency, high stability, high intelligence, modular design and installation, so that the process parameters have a memory function and real-time monitoring.In addition, different workpieces correspond to different programs. The machine is multi-purpose, and different coating solution can also be used according to different needs (such as:Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, zinc nickel plating, anti-rust coating, anti-corrosion coating, mechanical zinc plating), and the coating liquid tank and baskets are easy to replace.The overall layout of the dip spin coating equipment is reasonable, beautiful in appearance, efficient, economical and practical.Design and manufacture is in strict accordance with the dip spin coating process standards and specification requirements to ensure the advancement, reliability and ease of use and maintenance of the full-automatic dip spin coating machine.


Advantages

This coating machine is a full- automatic manipulator, with high efficiency, high stability, high intelligence, modular design and installation, so that the process parameters have a memory function and real-time monitoring.In addition, different workpieces correspond to different programs.

微信图片_20230706103751


Our dip spin coating machine is full-automatic,                                                    Suitable for water-based and solvent-based coating

with functions such as automatic loading and                                                        solutions, such as: Dacromet coating, zinc flake

weighing.                                                                                                                coating,Geomet, Magni,DÖRKEN, Teflon, zinc

                                                                                                       nickel plating, anti rust coating.



Features of Six Basket Full Automatic Dip Spin Coating Machine:

  1. Rationalized design: The planetary arrangement of the basket, the combination of revolution and rotation, 180° forward and reverse conversion, makes the position of the workpiece interchangeable, effectively removes the residual coating liquid of the workpiece, the workpiece is not damaged, and the pass rate is high.

  2. Intelligent control: one-button intelligent start, transmission speed adjustable by frequency conversion, automatic dip spin coating equipment), automatic loading and unloading, automatic weighing, high degree of automation, ensuring smooth operation of the whole process. The whole process is controllable, effectively reducing production costs.

  3. Super versatility: Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating, topcoat, sealer.

  4. Diversified colors: paint tank can be replaced according to corresponding paint color  to achieve the color diversification of the workpiece.

  5. Real-time monitoring: full-process monitoring, timely detection and feedback, to meet customer curing process requirements.

  6. Intelligent feeding system: each basket is connected, the workpiece is evenly distributed, and accumulation is avoided.

  7. Optional function: Robot feeding is optional.

  8. Customized service: Coating machine can be customized according to customer needs.

  9. Full service: Shisheng Group provides complete services from research and development, design, manufacturing, installation and after-sales.



Working Capability:

Workpiece range: Standard parts、stamping parts、customer specified parts.

Beat time: 1′30″/basket (adjustable)

Loading capacity: 40kg/basket

Production capacity (theory): 1.6 tons/h (one coating and one drying)

Product quality requirements: two-coating and two-baking or three-coating and three-baking Dacromet, coating thickness 6~10μm


Six Basket Full-Automatic Dip Spin Coating Machine’s Application:

  • Fastener

  • Nuts and bolts

  • Sheet metal parts

  • Nails and screws

  • Stamping parts

  • Spring

  • Chain

  • Gasket

  • Casting

  • Standard parts

  • Steel parts

  • Fixtures and other metal parts that need anti-corrosion coating process.

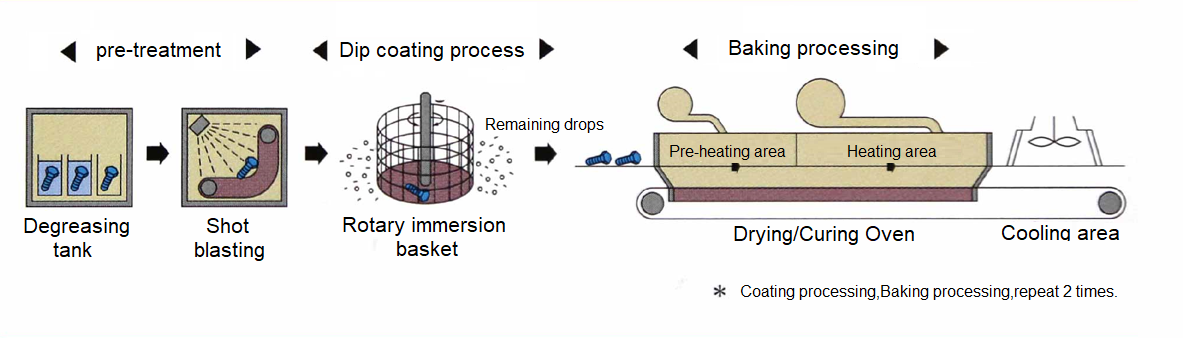

Work Process:

Zinc flake coating usually needs to complete the following process through dip spin coating equipment:

23



Main Body of Six Basket Full Automatic Dip Spin Coating Machine:

  • Dip Spin Coating Machine System

  • Centrifugal Coating System

  • Drying/Curing Oven System

  • Automatic Weighing System

  • Automatic Loading and Unloading System

  • Workpiece Rotation Conveying Distribution System

  • Coating Solution Temperature Adjustment System

  • Coating Solution Recovery Device

  • Operational Control System


DCM500 Six Basket Automatic Dip Spin Coating Machine

Technical Parameters / Model Number

Qty of basket

6 pcs

Basket diameter

Φ500mm

Drying power

7.5kw

Single basket capacity

40kg

Max production time

180s

Theoretical max production capacity

2400kg

Weighing system

1 set

Applicable workpiece diameter

ΦM4~M16

Applicable workpiece length

10mm~150mm
